Heavy–duty wedges and bridges
M133
Max. loading capacity:
48.000 KG

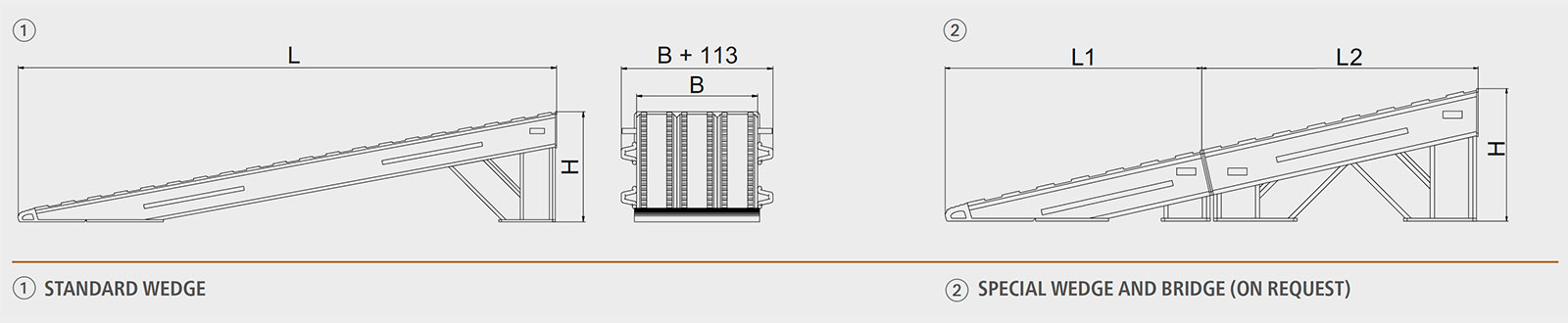

The loading system wedge with bridge, made with milled profiles with high mechanical characteristics, is the ideal solution to overcome small loading heights with heavy concentrated loads vehicles. The wedge can be used individually or extended through the use of a bridge in order to overcome loading heights up to 500 mm. The system is provided with safety rings to secure the structure through the chains and aluminum handles to facilitate the handling of each element. The product can be customized according to your needs.
Product Sectors:
| Item code | Loading capacity per pair kg Wheelbase 2000 mm | Length L* mm | External width B mm | Height H max mm | Weight per pair kg |
|---|---|---|---|---|---|
| MM133S0.45.25 | 34000 | 2500 | 450 | 500 | 180 |
| MM133S0.60.25 | 48000 | 2500 | 600 | 500 | 240 |
* Dimensions can be modified according to your load requirements. Please contact us for further details.
