MPCP

event & removal ramps

MPCP

Max. loading capacity: 2.000 kg

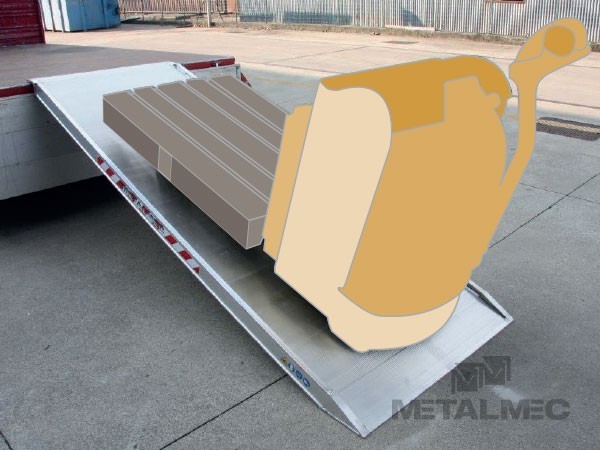

This innovative type of event & removal ramp is particularly suited to any sector that uses electric pallet trucks for loading and unloading work thanks to its high loading capacity and the outstanding grip of its driving surface. Logistics and manufacturing companies are just a few examples of potential users of this product range. The range is made with or without raised edges and the product is supplied with the required anchoring tabs.

Product Sectors:

MPCP

Head Types

1
Standard Head (L)
Standard Head (L)
2
Head with hook (G) (on request)
Head with hook (G) (on request)
3
L350 Head (on request)
L350 Head (on request)
4
Head with support (A) (on request)
Head with support (A) (on request)
5
Head with tube (T) (on request)
Head with tube (T) (on request)
Item code

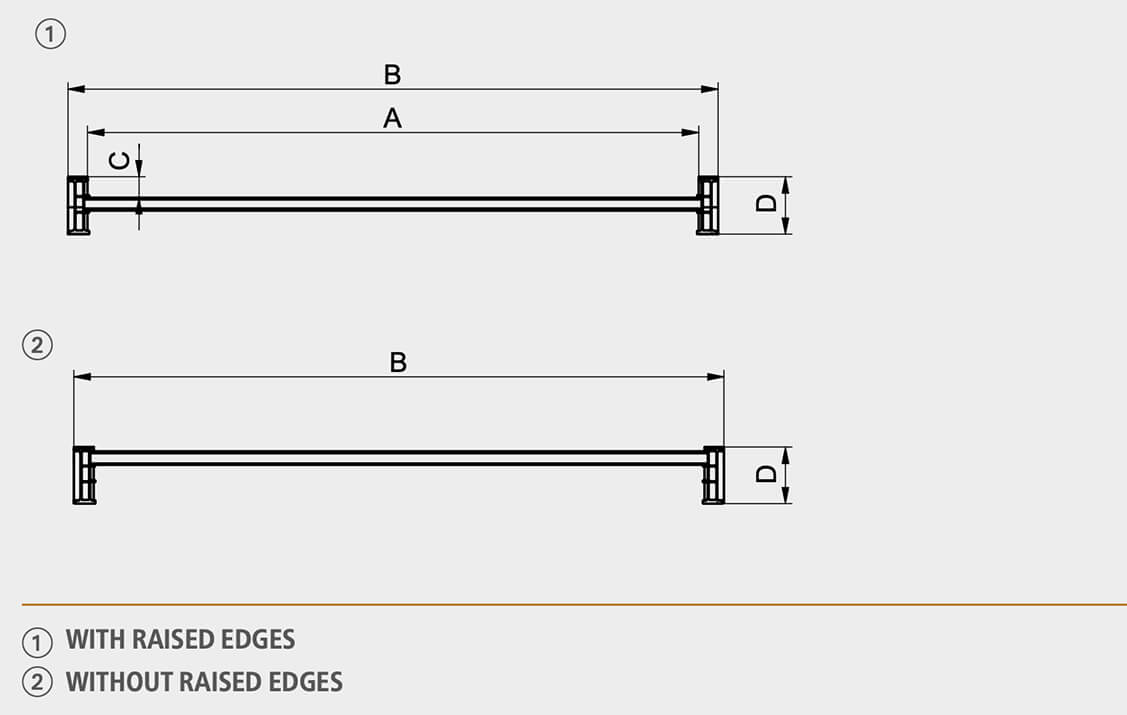

Model with raised edge without raised edge Loading capacity kg with 1000 mm wheelbase Standard length mm Internal width A mm External width B mm Height of raised edge C mm Height of ramp profile D mm Weight per piece kg
MPCP1800.1000.2000MM411BL.10.18MM411SL.10.182000179194010002911534
MPCP2000.1000.2000MM411BL.10.20MM411SL.10.202000199194010002911538
MPCP2400.1000.2000MM411BL.10.24MM411SL.10.242000239194010003012547
MPCP2600.1000.2000MM411BL.10.26MM411SL.10.262000259194010003012551
MPCP3000.1000.2000MM411BL.10.30MM411SL.10.302000299194010003114060
MPCP3600.1000.2000MM411BL.10.36MM411SL.10.362000359194010004215074
MPCP4000.1000.2000MM411BL.10.40MM411SL.10.402000399194010004316086
MPCP4400.1000.2000MM411BL.10.44MM411SL.10.442000439194010004317097

Anchoring Systems

Aluminium tab (standard):

The advantage of this anchoring system lies in the fact that the tab can be positioned along a large portion of the event & removal ramp's width, and can turn inside the head connection into which it has been inserted. The system comes with end caps for the head to prevent the tab disconnecting from the event & removal ramp during use.

Steel pin (on request):

A galvanised steel pin with a diameter of 14 mm and a 24-mm-diameter head can be inserted through the holes in the standard head connection of the event & removal ramp and the loading bed.

Handling Systems

Nylon handles (on request):

The product can be supplied with robust nylon handles to facilitate handling. Available in lengths of 30 cm and 60 cm, according to the model of the product selected. Recommended nylon handles for manual handling: 4 pcs each event ramp. Recommended nylon handles for handling by lifting equipment: 2 pcs minimum each event ramp.
