Skip ramps
M055P-M065P
Max. loading capacity:
300 kg
The M055P-M065P range of skip ramps, particularly suited to the fields of construction and gardening, has been designed for any application that requires the use of manual wheelbarrows in the loading and unloading of materials. The gaps in the driving surface not only allow the easy drainage of water or snow, but also have a self-cleaning effect on the dirt-covered wheels of the equipment , thereby guaranteeing good grip during use. The shoes of the user also benefit from this effect. This lightweight, easy-tohandle product is built with raised edges.
Product Sectors:

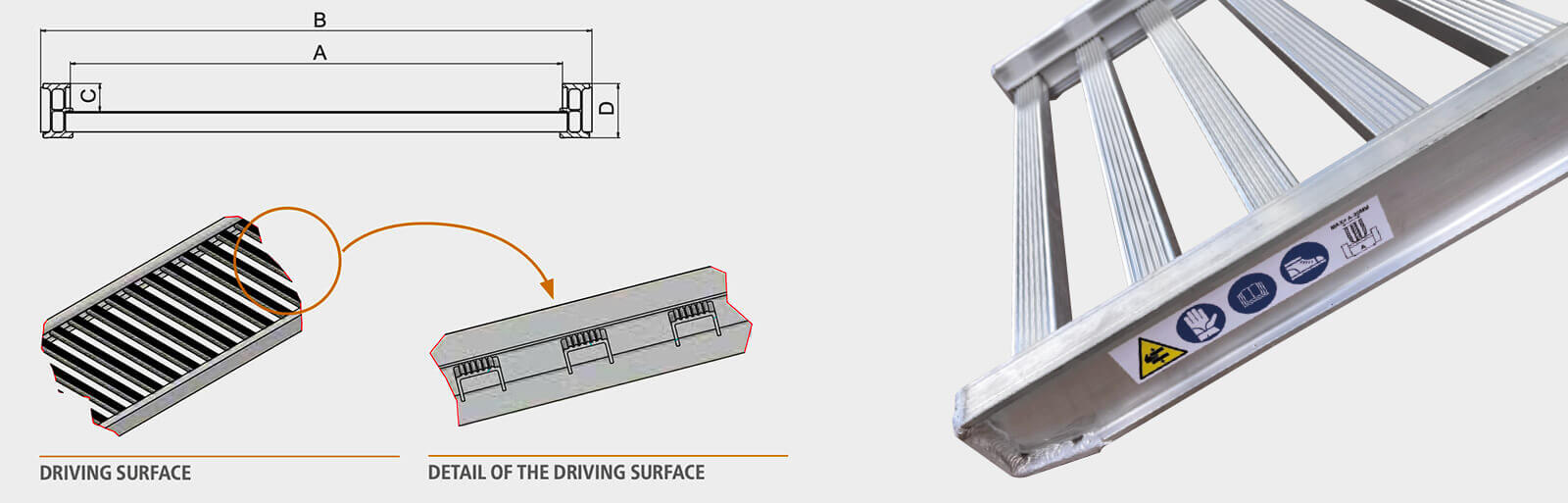

| Model | Item code | Loading capacity kg | Length L mm | Internal width A mm | External width B mm | Height of raised edge C mm | Height of ramp profile D mm | Weight per piece kg |
|---|---|---|---|---|---|---|---|---|
| M055P/30 | MM451B0.56.30 | 300 | 3000 | 500 | 560 | 28,5 | 55 | 17 |
| M055P/40 | MM451B0.56.40 | 300 | 4000 | 500 | 560 | 28,5 | 55 | 22 |
| M065P/50 | MM451B0.56.50 | 300 | 5000 | 500 | 560 | 28,5 | 65 | 30 |
| M065P/57 | MM451B0.56.57 | 300 | 5700 | 500 | 560 | 28,5 | 65 | 34 |
