Loading ramps
MPCL

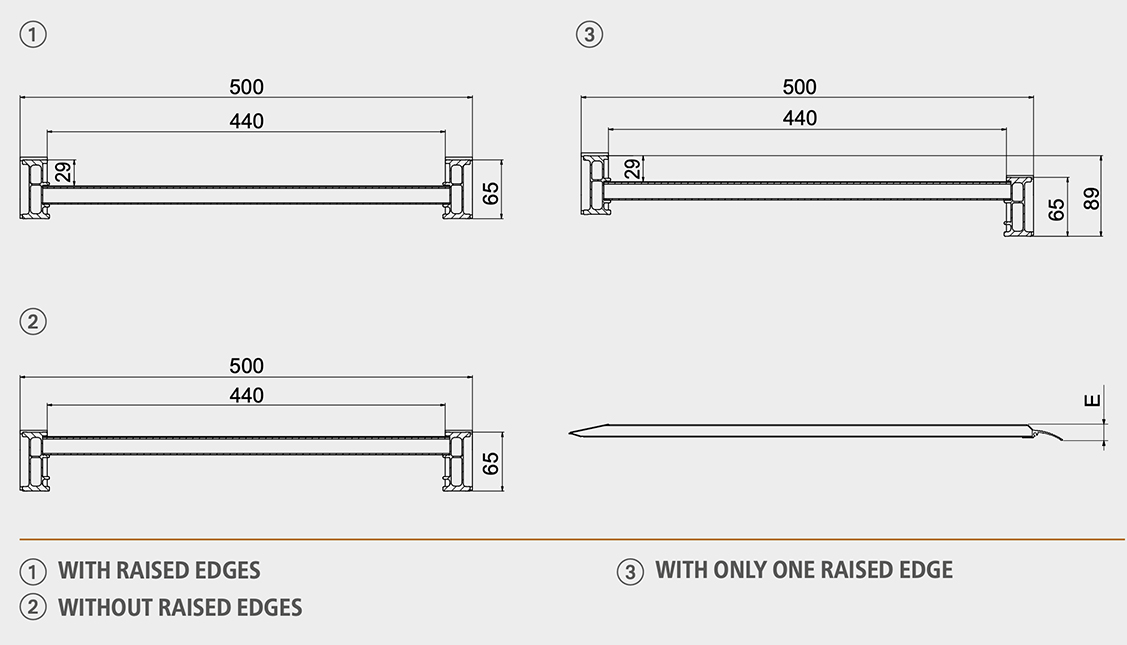

This range of ramps, made with a special non-slip driving surface, can be used individually or in pairs and is particularly suitable for moving small equipment with rubber wheels or tracks. The range is available with different types of head connections depending on the use and is made with raised edges, without raised edges or with only one raised edge. The product is supplied with the required anchoring tabs.
Product Sectors:
Head Types
| Item code | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | with raised edges | without raised edges | Loading capacity per pair kg with 1000 mm wheelbase | Individual loading capacity kg with 1000 mm wheelbase | Standard length mm | Length with head type "2" mm | Length with head type "3" mm | Length with head type "4" mm | Standard ramp dimension with raised edges E mm | Standard ramp dimension without raised edges E mm | Weight per pair kg |
| MPCL065/16 | MM430BL.50.16 | MM430SL.50.16 | 3000 | 1500 | 1591 | 1541 | 1443 | 1485 | 88 | 72 | 29 |
| MPCL065/18 | MM430BL.50.18 | MM430SL.50.18 | 2000 | 1000 | 1791 | 1741 | 1643 | 1685 | 88 | 72 | 32 |
| MPCL065/20 | MM430BL.50.20 | MM430SL.50.20 | 2000 | 1000 | 1991 | 1941 | 1843 | 1885 | 88 | 72 | 35 |
| MPCL065/24 | MM430BL.50.24 | MM430SL.50.24 | 1300 | 650 | 2391 | 2341 | 2243 | 2285 | 88 | 72 | 42 |
| MPCL065/26 | MM430BL.50.26 | MM430SL.50.26 | 1300 | 650 | 2591 | 2541 | 2443 | 2485 | 88 | 72 | 45 |
| MPCL065/30 | MM430BL.50.30 | MM430SL.50.30 | 1000 | 500 | 2991 | 2941 | 2843 | 2885 | 88 | 72 | 51 |
| MPCL065/36 | MM430BL.50.36 | MM430SL.50.36 | 800 | 400 | 3591 | 3541 | 3443 | 3485 | 88 | 72 | 61 |
| MPCL065/40 | MM430BL.50.40 | MM430SL.50.40 | 660 | 330 | 3991 | 3941 | 3843 | 3885 | 88 | 72 | 67 |
Minimum width of the wheel or track 100 mm. Maximum width of the wheel or track 420 mm.
The range is available with only one raised edge.
Anchoring Systems
The advantage of this anchoring system lies in the fact that the tab can be positioned along a large portion of the ramp's width, and can turn inside the head connection into which it has been inserted. The system comes with end caps for the head to prevent the tab disconnecting from the ramp during use.
A galvanised steel pin with a diameter of 14v mm and a 24-mm-diameter head can be inserted through the holes in the standard head connection of the ramp and the loading bed.
Handling Systems
The product can be supplied with robust nylon handles to facilitate handling. Available in lengths of 30 cm and 60 cm, according to the model of the product selected. Recommended nylon handles for manual handling: 4 pcs each ramp. Recommended nylon handles for handling by lifting equipment: 2 pcs minimum each ramp.
