loading ramps
M120S-AL
The extruded aluminium profile used in the production of this range of ramps allows the movement of vehicles weighing up to 26 tonnes. Thanks to the quintet sheet metal covering of the M120S-AL series ramps, they are particularly suitable for moving vehicles with solid rubber tyres or vehicles with rubber tracks. The vulcanised rubber covering of the M120S-R series ramps make them ideal for moving compactor rollers and vehicles with steel tracks. If worn out, the coverings can be replaced separately as they are fixed to the ramps with screws. Replacement coverings can be supplied on request. These ramps are available in various widths with different types of head connections. The range is made without raised edges and the product is supplied with the required anchoring chains.
Product Sectors:
Head Types
| Loading capacity per pair kg | |||||||
|---|---|---|---|---|---|---|---|

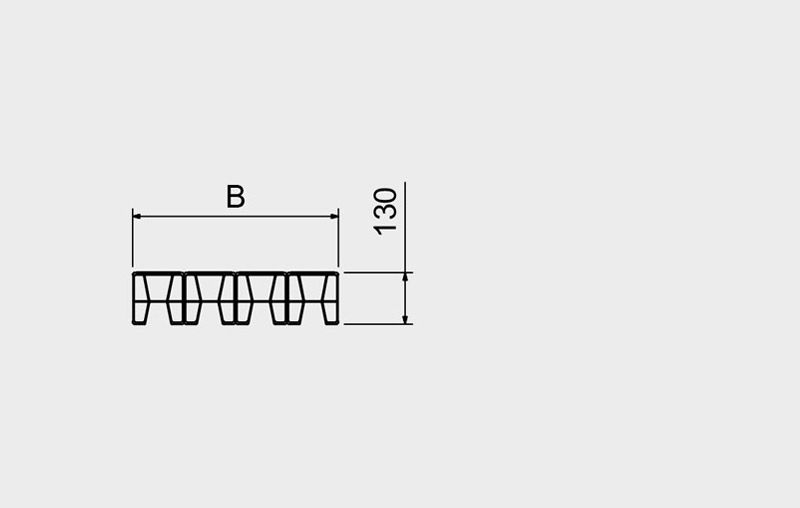

| Model | Item code | Wheelbase 1500 mm | Wheelbase 1750 mm | Wheelbase 2000 mm | Length mm | External width B mm | Weight per pair kg |
| M120S/3/20 AL | MM120SL.36.20 | 13200 | 13200 | 13200 | 2000 | 360 | 81 |
| M120S/3/25 AL | MM120SL.36.25 | 13200 | 13200 | 13200 | 2500 | 360 | 100 |
| M120S/3/30 AL | MM120SL.36.30 | 9574 | 11489 | 13200 | 3000 | 360 | 119 |
| M120S/3/35 AL | MM120SL.36.35 | 7181 | 8207 | 9574 | 3500 | 360 | 137 |
| M120S/3/40 AL | MM120SL.36.40 | 5744 | 6383 | 7181 | 4000 | 360 | 156 |
| M120S/3/45 AL | MM120SL.36.45 | 4787 | 5222 | 5744 | 4500 | 360 | 175 |
| M120S/3/50 AL | MM120SL.36.50 | 4103 | 4419 | 4787 | 5000 | 360 | 194 |
| M120S/3/55 AL | MM120SL.36.55 | 3590 | 3829 | 4103 | 5500 | 360 | 213 |
| M120S/4/20 AL | MM120SL.48.20 | 17500 | 17500 | 17500 | 2000 | 480 | 108 |
| M120S/4/25 AL | MM120SL.48.25 | 17500 | 17500 | 17500 | 2500 | 480 | 133 |
| M120S/4/30 AL | MM120SL.48.30 | 12766 | 15319 | 17500 | 3000 | 480 | 158 |
| M120S/4/35 AL | MM120SL.48.35 | 9574 | 10942 | 12766 | 3500 | 480 | 183 |
| M120S/4/40 AL | MM120SL.48.40 | 7659 | 8511 | 9574 | 4000 | 480 | 208 |
| M120S/4/45 AL | MM120SL.48.45 | 6383 | 6963 | 7659 | 4500 | 480 | 234 |
| M120S/4/50 AL | MM120SL.48.50 | 5471 | 5892 | 6383 | 5000 | 480 | 259 |
| M120S/4/55 AL | MM120SL.48.55 | 4787 | 5106 | 5471 | 5500 | 480 | 284 |
| M120S/5/20 AL | MM120SL.60.20 | 21700 | 21700 | 21700 | 2000 | 600 | 135 |
| M120S/5/25 AL | MM120SL.60.25 | 21700 | 21700 | 21700 | 2500 | 600 | 166 |
| M120S/5/30 AL | MM120SL.60.30 | 15958 | 19149 | 21700 | 3000 | 600 | 198 |
| M120S/5/35 AL | MM120SL.60.35 | 11968 | 13678 | 15958 | 3500 | 600 | 229 |
| M120S/5/40 AL | MM120SL.60.40 | 9574 | 10638 | 11968 | 4000 | 600 | 260 |
| M120S/5/45 AL | MM120SL.60.45 | 7979 | 8704 | 9574 | 4500 | 600 | 292 |
| M120S/5/50 AL | MM120SL.60.50 | 6839 | 7365 | 7979 | 5000 | 600 | 323 |
| M120S/5/55 AL | MM120SL.60.55 | 5984 | 6383 | 6839 | 5500 | 600 | 355 |
| M120S/6/20 AL | MM120SL.72.20 | 26300 | 26300 | 26300 | 2000 | 720 | 162 |
| M120S/6/25 AL | MM120SL.72.25 | 26300 | 26300 | 26300 | 2500 | 720 | 200 |
| M120S/6/30 AL | MM120SL.72.30 | 19149 | 22979 | 26300 | 3000 | 720 | 237 |
| M120S/6/35 AL | MM120SL.72.35 | 14362 | 16414 | 19149 | 3500 | 720 | 275 |
| M120S/6/40 AL | MM120SL.72.40 | 11489 | 12766 | 14362 | 4000 | 720 | 312 |
| M120S/6/45 AL | MM120SL.72.45 | 9574 | 10445 | 11489 | 4500 | 720 | 350 |
| M120S/6/50 AL | MM120SL.72.50 | 8207 | 8838 | 9574 | 5000 | 720 | 388 |
| M120S/6/55 AL | MM120SL.72.55 | 7181 | 7659 | 8207 | 5500 | 720 | 426 |
Anchoring Systems
The steel chain must be hooked using the carabiner clip supplied to the loading bed, and must be inserted into the appropriate attachment system provided under the ramp’s driving surface.
A galvanised steel pin with a diameter of 14v mm and a 24-mm-diameter head can be inserted through the holes in the standard head connection of the ramp and the loading bed.
Handling Systems
The product can be supplied with robust nylon handles to facilitate handling. Available in lengths of 30 cm and 60 cm, according to the model of the product selected. Recommended nylon handles for manual handling: 4 pcs each ramp. Recommended nylon handles for handling by lifting equipment: 2 pcs minimum each ramp.
