tail lifts
MS030 AC
Max. loading capacity:
4.170 Kg

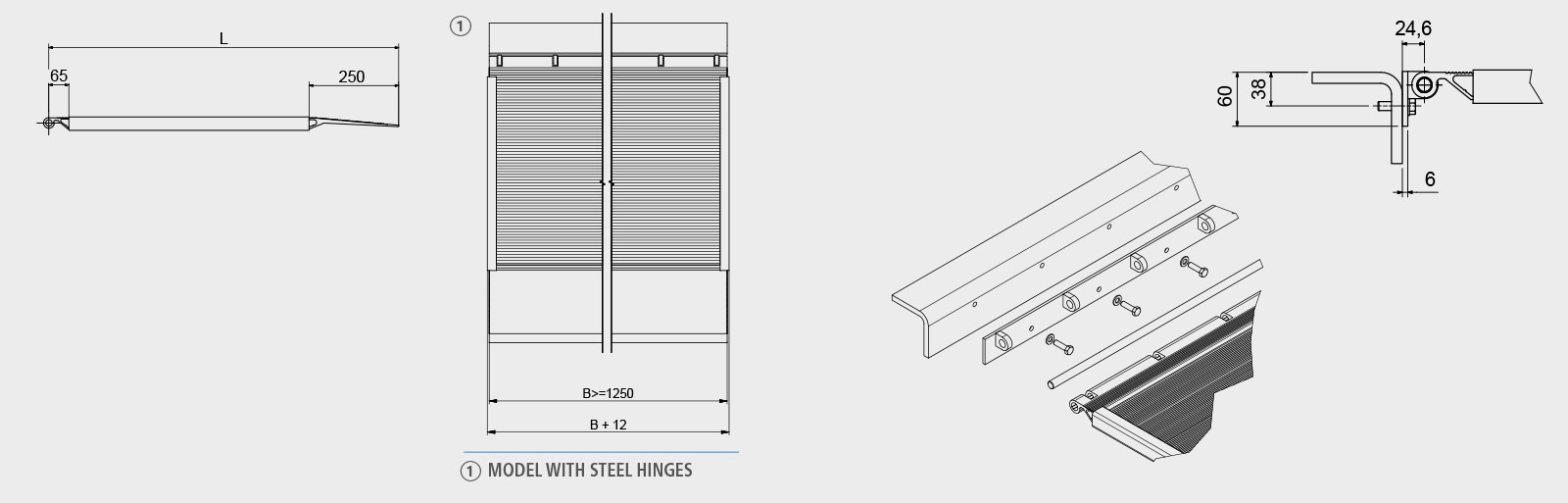

This range of hinged tail lifts, with a thickness of 30 mm, comes with two types of fastening to fix the tail lift to the vehicle's loading bed: steel and aluminium. Made using robust extruded aluminium profiles that have a knurled, non-slip surface, they are particularly valued by manufacturers and bodybuilders of transport vehicles and are ideally suited to loading and unloading goods using electric pallet trucks and forklift trucks.
Product Sectors:
| Model | Item code | Max. loading capacity kg | Length L mm | Width B* mm | Weight kg/m |
|---|---|---|---|---|---|
| MS030AC/565 | MM600S0.12.05 | 4170 | 565 | From 1250 mm on request | 19 |
| MS030AC/690 | MM600S0.12.06 | 3420 | 690 | From 1250 mm on request | 21 |
| MS030AC/815 | MM600S0.12.08 | 2890 | 815 | From 1250 mm on request | 25 |
| MS030AC/940 | MM600S0.12.09 | 2510 | 940 | From 1250 mm on request | 27 |
| MS030AC/1065 | MM600S0.12.10 | 2210 | 1065 | From 1250 mm on request | 30 |
| MS030AC/1190 | MM600S0.12.11 | 1980 | 1190 | From 1250 mm on request | 34 |
| MS030AC/1315 | MM600S0.12.13 | 1790 | 1315 | From 1250 mm on request | 36 |
| MS030AC/1565 | MM600S0.12.15 | 1300 | 1565 | From 1250 mm on request | 42 |
| MS030AC/1690 | MM600S0.12.16 | 1100 | 1690 | From 1250 mm on request | 45 |
| MS030AC/1815 | MM600S0.12.18 | 950 | 1815 | From 1250 mm on request | 48 |
| MS030AC/2065 | MM600S0.12.20 | 720 | 2065 | From 1250 mm on request | 54 |
* Minimum: 1250 mm
Other dimensions available on request.
