Wheel risers
MCR
Max. loading capacity:
12.000 kg

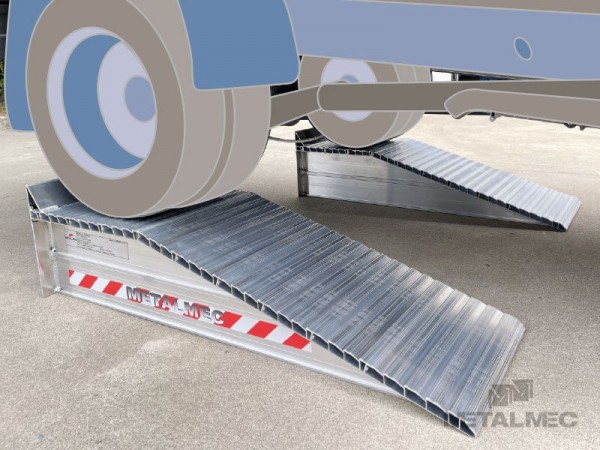

This product range of wheel risers has been designed to lead the loading bed of transport vehicles to the same level of the loading and unloading docks of logistics platforms. They can also be used to lift vehicles that need maintenance. The wheel risers are made with high-resistant aluminium profiles and come with the safety wheel catch. Upon request, it is possible to manufacture the product with special measures.
Product Sectors:

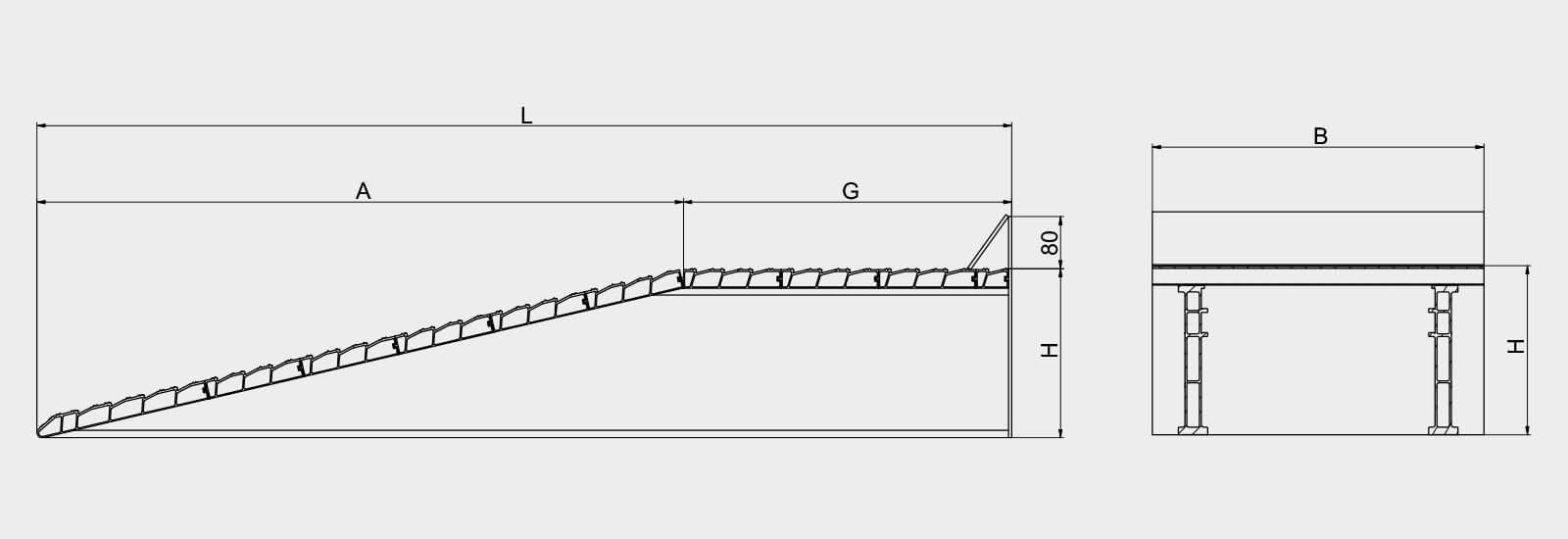

| Model | Item code | Loading capacity per pair kg | Length L mm | External width B mm | Inclined plane lenght A mm | Horizontal plane lenght G mm | Height H mm | Weight per pair kg |
|---|---|---|---|---|---|---|---|---|
| MCR/145 | MM565S0.51.14 | 12000 | 1217 | 510 | 712 | 505 | 145 | 34 |
| MCR/190 | MM565S0.51.19 | 12000 | 1514 | 510 | 1009 | 505 | 190 | 48 |
| MCR/260 | MM565S0.51.26 | 12000 | 1500 | 510 | 995 | 505 | 260 | 61 |
| MCR/310 | MM565S0.51.31 | 12000 | 1488 | 510 | 983 | 505 | 310 | 57 |
Minimum width of the wheel or track 300 mm.
