Wedge access ramps
MBAL
Max. loading capacity:
800kg

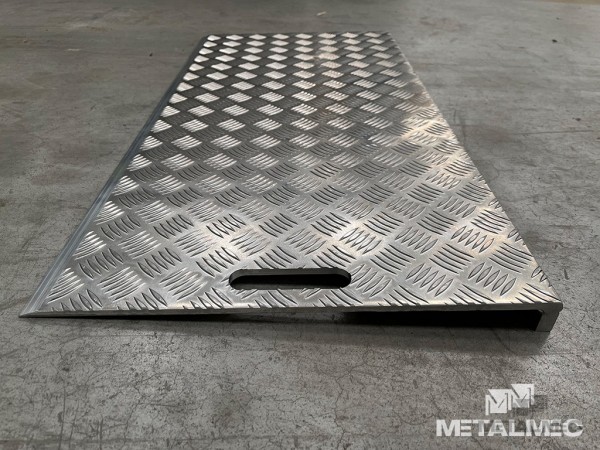

This type of wedge-type access ramp, made of non-slip corrugated sheet metal coating, is used to overcome small differences in height by wheeled equipment such as hand trucks, hand pallet trucks and electric pallet trucks.
Thanks to its lightweight and the presence of a lateral loop in the surface, the product can be moved quickly and effortlessly according to usage requirements.
Product Sectors:

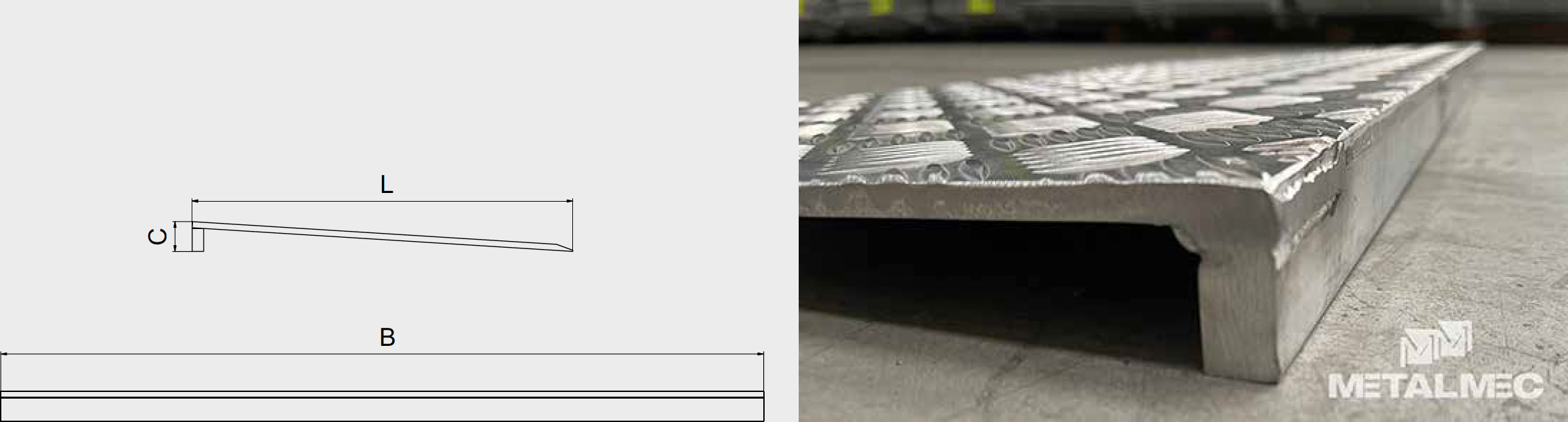

| Model | Item code | Loading capacity kg | Length L* mm | Width B* mm | Height C* mm | Weight kg |
|---|---|---|---|---|---|---|
| MBAL/1000/500/10 | MM540S0.0010 | 800 | 500 | 1000 | 10 | 11 |
| MBAL/1000/500/20 | MM540S0.0020 | 800 | 500 | 1000 | 20 | 11 |
| MBAL/1000/500/30 | MM540S0.0030 | 800 | 500 | 1000 | 30 | 11 |
| MBAL/1000/500/40 | MM540S0.0040 | 800 | 500 | 1000 | 40 | 12 |
| MBAL/1000/500/50 | MM540S0.0050 | 800 | 500 | 1000 | 50 | 12 |
