Wedge access ramps
MBAS
Max. loading capacity:
3000kg
This type of wedge-type access ramp, made of high-strength aluminium profiles and with a special non-slip walking surface, allows wheelchair users to easily overcome small differences in height.
Thanks to its lightness, the product can be moved quickly and effortlessly according to usage requirements.
Product Sectors:

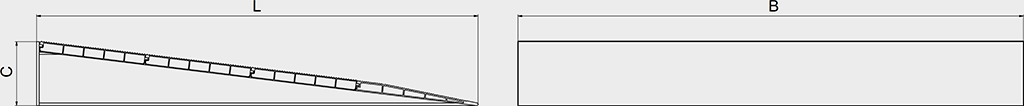

| Model | Item code | Loading capacity kg with 1000 mm wheelbase | Length L* mm | Width B* mm | Height C* mm | Weight kg |
|---|---|---|---|---|---|---|
| MBAS/950/635/60 | MM561S0.0060 | 1000 | 635 | 950 | 60 | 8 |
| MBAS/950/635/65 | MM561S0.0065 | 1000 | 635 | 950 | 65 | 8 |
| MBAS/950/635/70 | MM561S0.0070 | 1000 | 635 | 950 | 70 | 9 |
| MBAS/950/635/75 | MM561S0.0075 | 1000 | 635 | 950 | 75 | 9 |
| MBAS/950/635/80 | MM561S0.0080 | 1000 | 635 | 950 | 80 | 9 |
| MBAS/950/635/85 | MM561S0.0085 | 1000 | 635 | 950 | 85 | 9 |
| MBAS/950/635/90 | MM561S0.0090 | 1000 | 635 | 950 | 90 | 9 |
| MBAS/950/635/95 | MM561S0.0095 | 1000 | 635 | 950 | 95 | 9 |
| MBAS/950/635/100 | MM561S0.0100 | 1000 | 635 | 950 | 100 | 9 |
| MBAS/950/635/105 | MM561S0.0105 | 1000 | 635 | 950 | 105 | 9 |
| MBAS/950/835/110 | MM561S0.0110 | 1000 | 835 | 950 | 110 | 12 |
| MBAS/950/835/115 | MM561S0.0115 | 1000 | 835 | 950 | 115 | 12 |
| MBAS/950/830/120 | MM561S0.0120 | 1000 | 830 | 950 | 120 | 12 |
| MBAS/950/830/125 | MM561S0.0125 | 1000 | 830 | 950 | 125 | 12 |
| MBAS/950/830/130 | MM561S0.0130 | 1000 | 830 | 950 | 130 | 12 |
| MBAS/950/830/135 | MM561S0.0135 | 1000 | 830 | 950 | 135 | 12 |
| MBAS/950/1030/140 | MM561S0.0140 | 1000 | 1030 | 950 | 140 | 15 |
| MBAS/950/1030/145 | MM561S0.0145 | 1000 | 1030 | 950 | 145 | 16 |
| MBAS/950/1030/150 | MM561S0.0150 | 1000 | 1030 | 950 | 150 | 16 |
| MBAS/950/1030/155 | MM561S0.0155 | 1000 | 1030 | 950 | 155 | 16 |
| MBAS/950/1030/160 | MM561S0.0160 | 1000 | 1030 | 950 | 160 | 16 |
| MBAS/950/1030/165 | MM561S0.0165 | 1000 | 1030 | 950 | 165 | 16 |
| MBAS/950/1030/170 | MM561S0.0170 | 1000 | 1030 | 950 | 170 | 17 |
* Dimensions can be modified according to your load requirements. Please contact us for further details.
