bridge access ramps
MBAP
Max. loading capacity:
150 kg
This range of bridge access ramps, made with non-slip, aluminium quintet tread plates welded together, allows wheelchair users to easily overcome small obstacles on the ground, such as skirting boards and door thresholds, pipes and cable ducts. Its light weight means that the product can be quickly and easily moved to another position as required. The dimensions may vary according to specific needs.
Product Sectors:

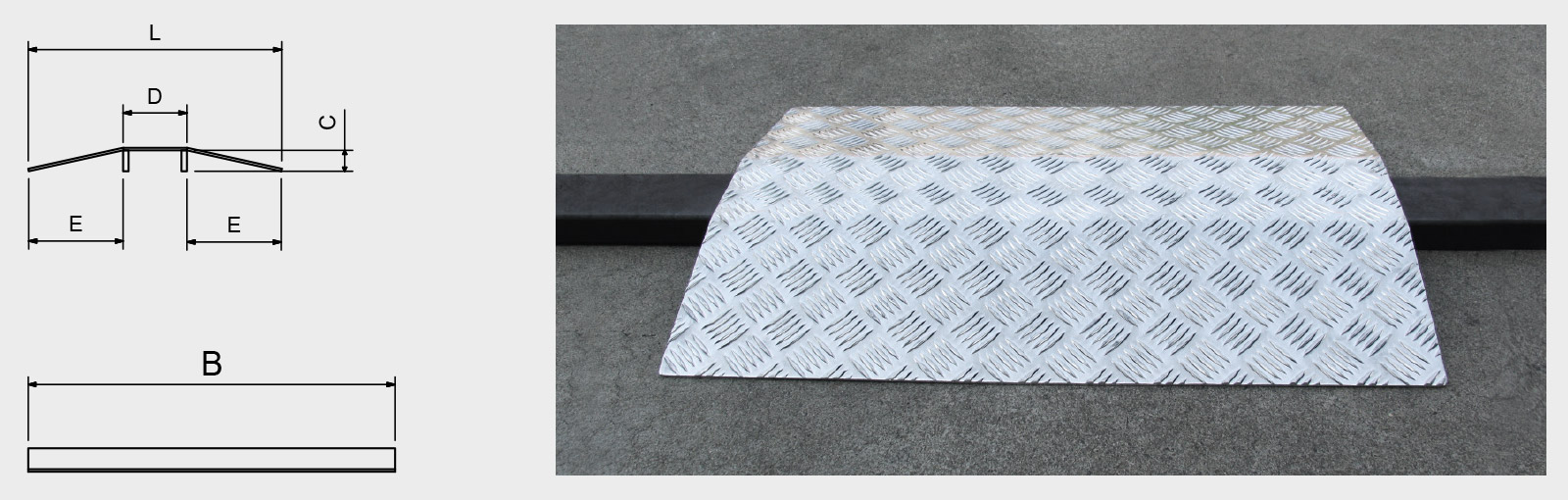

| Model | Item code | Loading capacity kg | Length L* mm | Width B* mm | Height C* mm | D* mm | E* mm | Weight kg |
|---|---|---|---|---|---|---|---|---|
| MBAP1 | MM550S0.70.05 | 150 | 490 | 700 | 40 | 120 | 185 | 4 |
* Dimensions can be modified according to your load requirements. Please contact us for further details.
